Fiber Optic Cable Singlemode-GYTA/S-6/12/24/96 core
- TEL: +86-028-85033487
- Skype: #
- E-mail: jasonclan@126.com
Description:

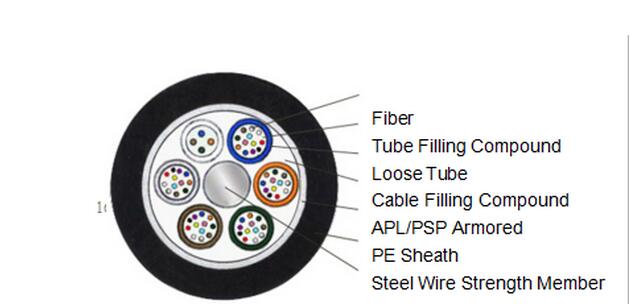

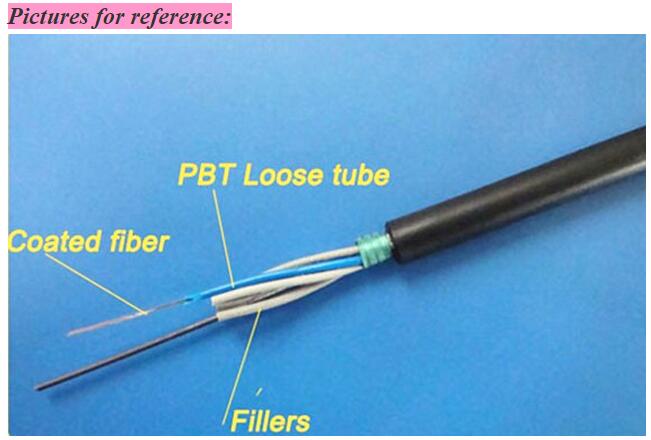

In the GYTA/GYTS cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.
Application: Duct/Aerial
Characteristics:
1.Excellent mechanical and temperature
performance guaranteed by the accurate excess Fiber length
2.Critical protection to fibers
3.The following measures are taken to ensure the
water blocking performance of the cable.
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
- 100% cable core filling
Standards:
Comply with standard YD/T 901-2009 as well as IEC 60794-1

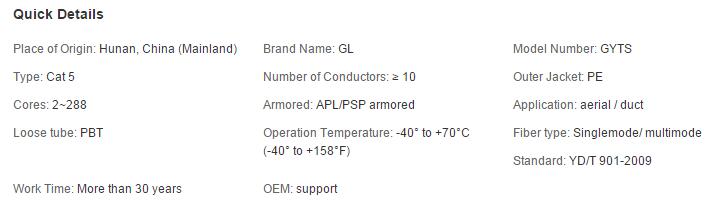

Technical Parameters:

Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.
2.The dimensions and raw materials can be designed according to the demand of the customers.
3.Standard Reel Length: 3000m/reel: other lengths available on request.

Temperature Range:
Storing temperature:-40℃ to +70℃
Operating temperature:-40℃ to +70℃
