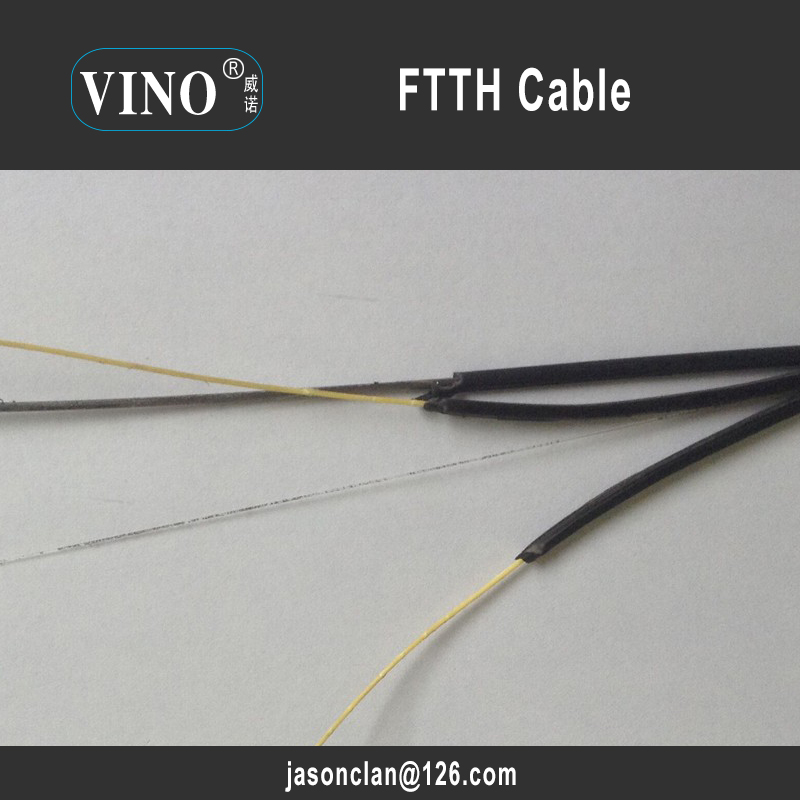

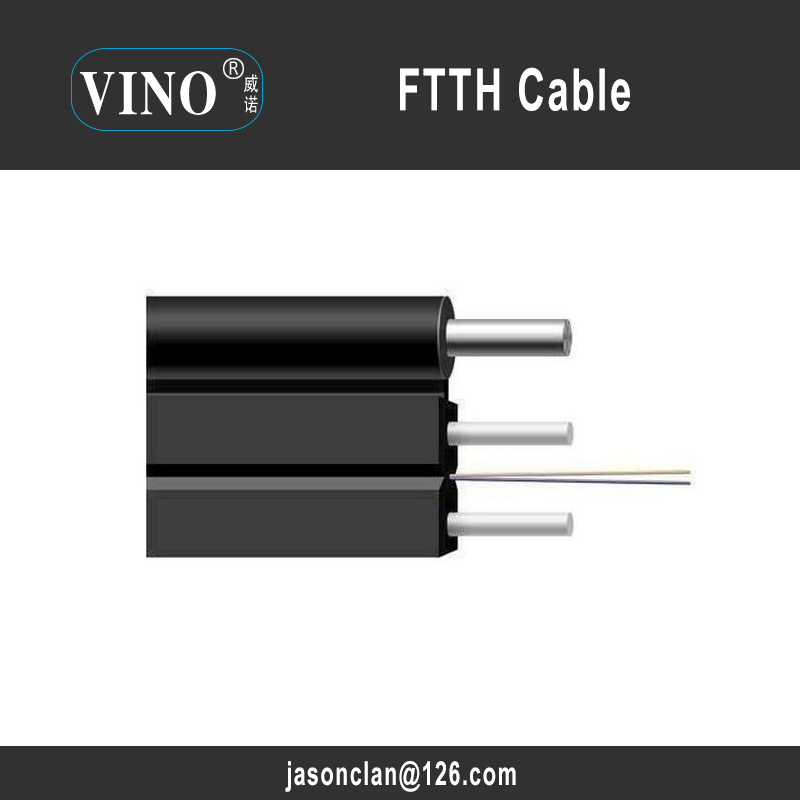

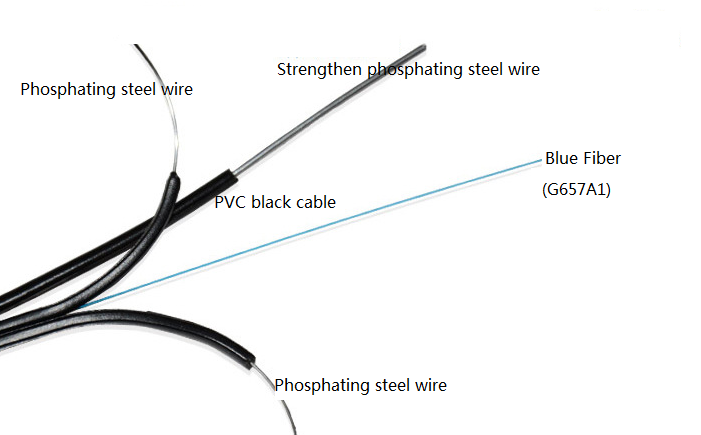

FTTH Drop fiber optic cable GJYXCH
Special tube filling compound ensure a critical protection of fiber;special sesigned compact structure is good at preventing loose tubes from shrinkong;FRP used as the central strength member;Water-blocking tape enhancing moisture-proof.
Fiber Parameters:
|
No.
|
Items
|
Unit
|
Specification
|
||
|
G.657A1 / G.657A2
|
|||||
|
1
|
Mode Field Diameter
|
1310nm
|
μm
|
9.0±0.4
|
|
|
1550nm
|
μm
|
10.1±0.5
|
|||
|
2
|
Cladding Diameter
|
μm
|
124.8±0.7
|
||
|
3
|
Cladding Non-Circularity
|
%
|
≤0.7
|
||
|
4
|
Core-Cladding Concentricity Error
|
μm
|
≤0.5
|
||
|
5
|
Coating Diameter
|
μm
|
245±5
|
||
|
6
|
Coating Non-Circularity
|
%
|
≤6.0
|
||
|
7
|
Cladding-Coating Concentricity Error
|
μm
|
≤12.0
|
||
|
8
|
Cable Cutoff Wavelength
|
nm
|
λcc≤1260
|
||
|
9
|
Attenuation(max.)
|
1310nm
|
dB/km
|
≤0.35
|
|
|
1550nm
|
dB/km
|
≤0.21
|
|||
|
10
|
Macro-Bending Loss
|
1turn×10mm radius @1550nm
|
dB
|
≤0.75
|
|
|
1turn×10mm radius @1625nm
|
dB
|
≤1.5
|
|||
Cable Parameters:
|
Items
|
Specifications
|
|
|
Fiber Count
|
1/2/4
|
|
|
Colored Coating Fiber
|
Dimension
|
250±15μm
|
|
Color
|
Blue/Blue, Orange
|
|
|
Strength Member
|
Dimension
|
0.45mm
|
|
Material
|
Steel Wire
|
|
|
Self-Supporting Member
|
Dimension
|
1.0mm
|
|
Material
|
Steel Wire
|
|
|

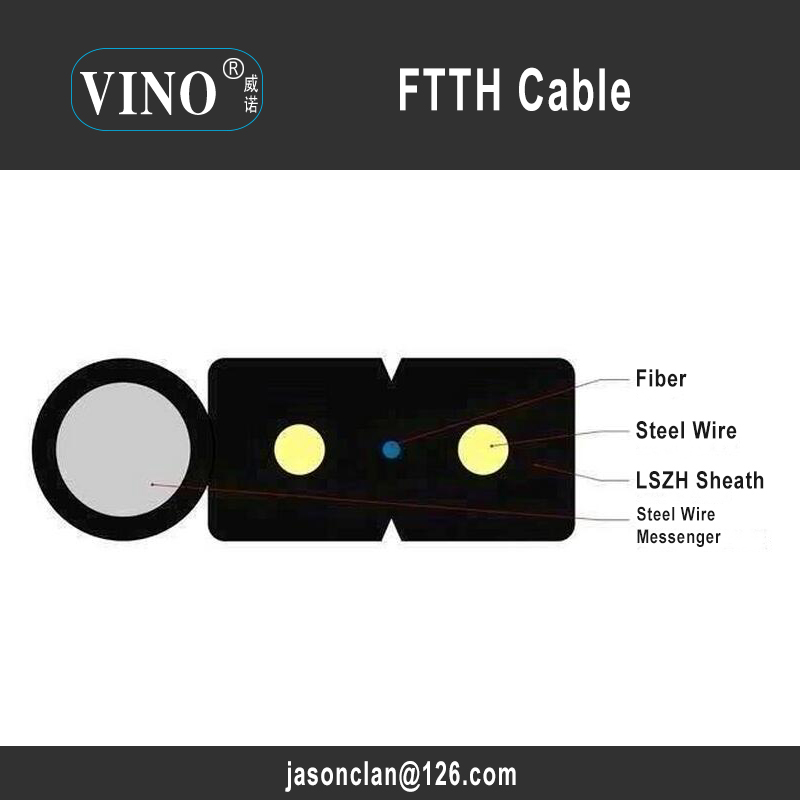

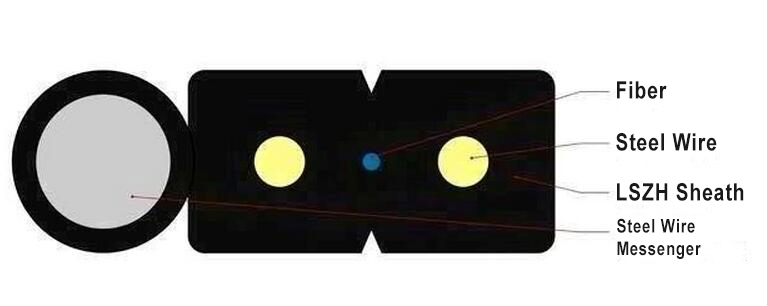

Jacket
|
Dimension
|
5.2±0.2mm×2.1±0.1mm
|
|
Material
|
LSZH
|
|
|
Color
|
Black
|
|
Technical Parameters:
|
Type
|
Cores
|
Cable diameter(mm)
|
Short stretch(N)
|
Long-term tensile(N)
|
Short
squash
(N/100cm)
|
Long-term
squash
(N/100cm)
|
Bending Radius
/Static
|
Bending Radius
/Dynamic
|
Weight (Kg/Km)
|
|
FTTH
|
1
|
2.0*3.0
|
30
|
60
|
300
|
1000
|
15D
|
30D
|
20
|
|
FTTH
|
2
|
2.0*3.4
|
30
|
60
|
300
|
1000
|
15D
|
30D
|
22
|
|
FTTH
|
4
|
2.0*3.8
|
30
|
60
|
300
|
1000
|
15D
|
30D
|
25
|
