Fiber Optic Cable Singlemode-GYXTW-6/12/24/96 core
- TEL: +86-028-85033487
- Skype: #
- E-mail: jasonclan@126.com
Description:

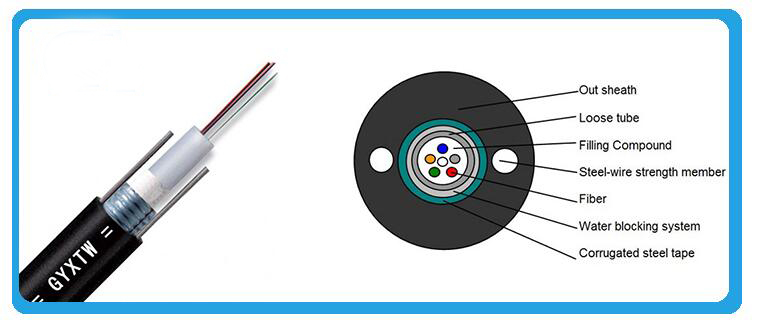

In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Application:Aerial/ Duct
Temperature Rage:
Storing temperature:-40℃ to +70℃
Operating temperature:-40℃ to +70℃
Characteristics:
1.Excellent mechanical and temperature performance
guaranteed by the accurate excess fiber length.
2.Critical protection to fibers, based on the excellent
hydrolysis resistance and strength performance of tube material
and special filling compound filled in the tube.
3.Special compact structure to avoid the loose tube shrinkage.
4.Excellent crush resistance and flexibility.
5.PSP enhances the cable crush-resistance, impact-resistance
and moisture-proof.
6.Two parallel steel wires ensure tensile strength.
Small diameter, light weight and installation friendliness with
long delivery length.
7. Excellent ultraviolet prevention with PE sheath.
8. Small diameter, light weight and installation friendliness
Standards:
Comply with standard YD/T 769-2010
Technical Parameters:
|
Cable Type (increased by 2fibers)
|
Fiber Count
|
Cable Diameter mm
|
Cable Weight kg/km
|
Tensile Strength Long/Short Term N
|
Crush Resistance Long/Short Term N/100mm
|
Bending Radius Static/Dynamic mm
|
|
GYXTW 2 ~12
|
2 ~ 12
|
8.2
|
78
|
600/1500
|
300/1000
|
10D/20D
|
Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
2. The dimensions and raw materials can be designed according to the demand of the customers.

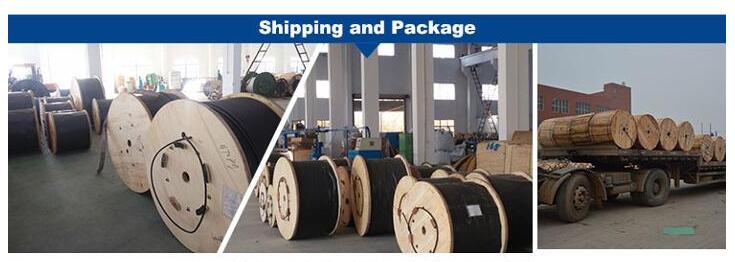

3. Standard Reel Length: 3000m/reel: other lengths available on request.
