Description

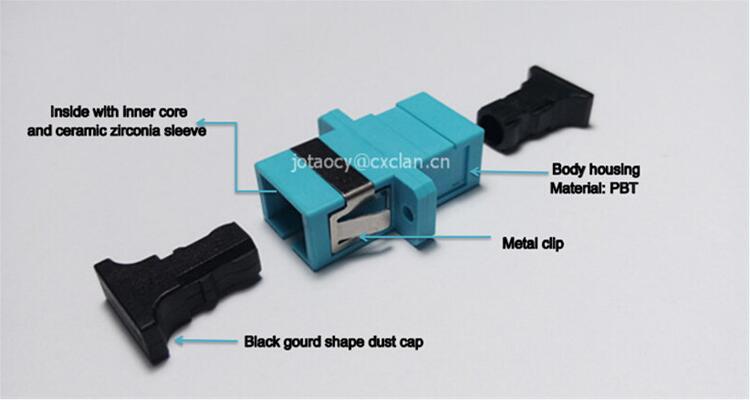

SC adapter is comprised of a polymer or metal outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer and precision metal housing provided consistent long-term mechanical and optical performance.

• Place of Origin: Sichuan, China (Mainland)
• Brand Name: VINO/CLAN/OEM
• Model Number: SC APC adaptor
• Color: Green
• Polishing: APC
• Material: PBT
• Sleeve: Ceramic Zirconia
• Insertion loss: ≤0.2db
• Repeatability: 0.2dB (1000times)
• Return Loss: ≥55db
• Mechanical resistance:: 200-600g
• Operating Temperature: -40~75℃
• Storage Temperature: -45~85℃

Packaging Details:

Choice 1: 50 pcs per plastic box:
Choice 2: 50 pcs per PP bag
Delivery Detail: 3 days
